8色可選
高精度UV技術
整體焊接時效處理機架經久耐用!
鋁合金蜂窩鋁板,絲級精度,平面度高!

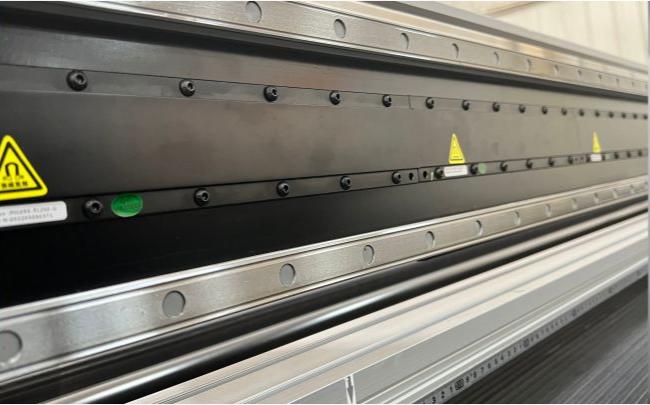

X向雙靜音導軌 打印無噪音!
Y向采用經典雙導軌雙絲杠雙交流伺服電機驅動,打印穩定性高。
2.貼心設計:
高品質靜電消除裝置提升打印品質!

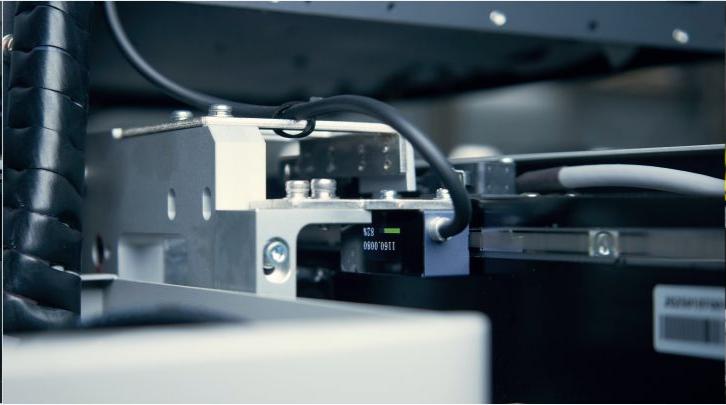

介質自動測高方便打印各種厚度材料!
定位銷功能方便重復打印批量材料!
配置電腦支架吸附控制系統,方便打印各種尺寸材料!

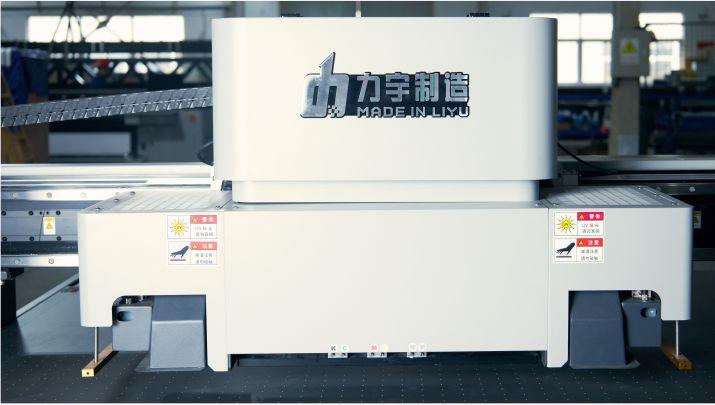

小車防撞系統,最大程度保護噴頭UV燈等貴重組件! 3.噴頭配置:
5pl-15pl可變墨滴,
精度和性價比首選!
3200個噴孔,點火頻率4級灰度最高到24KHZ。
有效打印寬度67.5mm。
4.固化組件 配置高品質水冷LED系統,材料不變形,低功耗更環保!

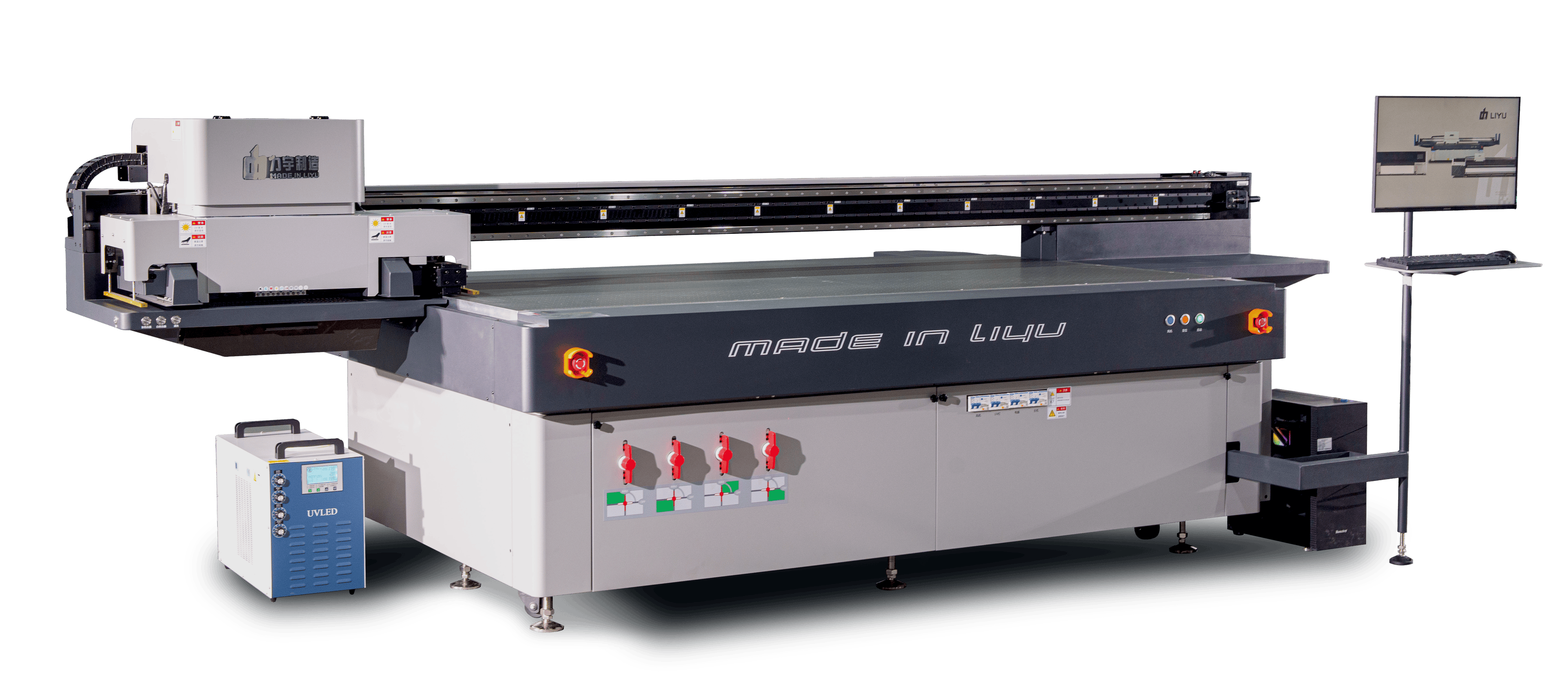

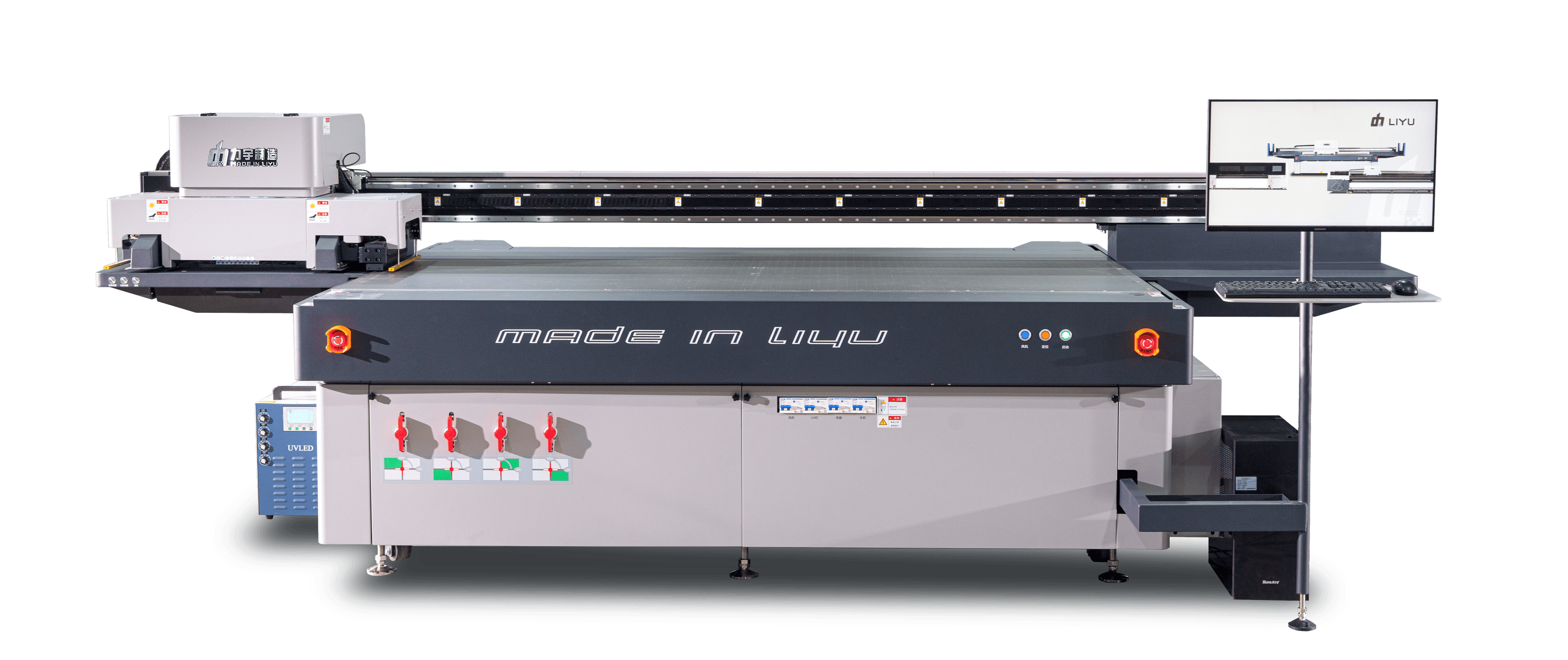

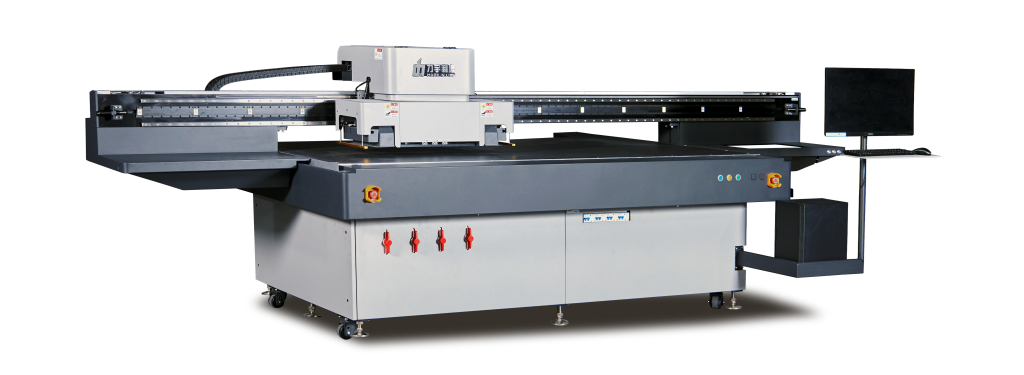

機器型號/Model | KCS2512 |
打印技術/Print Technology | Piezo continuous drop-on demand(DOD) |
噴頭類型/Head Model | RICOH GEN5S/RICOH GEN5/RICOH GEN6/KM9888H |
噴頭個數/Printhead Quantity | 2-9只 |
墨滴大小/Drop Volume | 7 Pl./5Pl. |
顏色配置/Color options | CMYKLcLm+White+Varnish |
供墨方式/Ink Supply System | 采用真空負壓自動連續供墨 |
Automatic continuousink supply with vacuum negative pressure | |
墨水類型/INK Type | UV型墨水/Environmental friendly UV/LED curable ink |
烘干裝置/Drying System | LED UV燈固化/LED UVlamp Curing |
平板尺寸/Flat-Bed Size | 2500mmx1300mm |
打印厚度/Print Height | 100mm/200mm(可選/optional) |
打印分辨率/Print Resolution | 600*2400 dpi |
最快打印模式及效率/Print Mode and Eficiency | 300*9003pass 80m2/h(草圖模式/Draft Mode) |
介質吸附/Dielectric adsorption | 臺面真空吸附/Desktop Vacuum Adsorption |
RIP軟件/RIP Software | Photo print19/Print Factory |
X向驅動伺服電機/直線電機(可選) | |
硬件/Hardware | X-direction driver Servo motor/Linearmotor(Opt.) Y向驅動滾珠絲杠*2+直線導軌*2+伺服電機*2 |
Y-direction driver Ball screw*2+Linear guider*2+Servo motor*2 | |
電源要求/Power Requirement | 主機220v(+/-)10%/50A/50HZ |
2512機器尺寸/Machine Size 2512 | 2200mm×4450mmx1500mm |
機器重量/Machine Weight | 1000kg. |
環境要求/Environmental Requirements | 溫度/Temperature 15℃~30℃ 相對濕度/Relative humidity 40%～80% |
